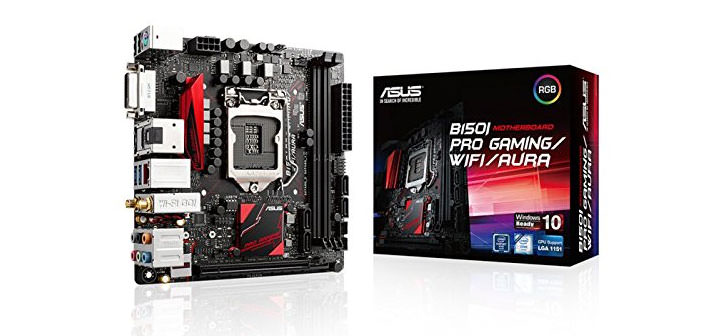

ASUS B150I Pro Gaming/WiFi/Aura: Gaming motherboard Mini-ITX
ASUS extends the portfolio of gaming motherboards presenting the new B150I Pro Gaming / WiFi / Aura. Proposed at a price of $125 in the market, it includes the best features of the recent B150 Pro Gaming Aura in the Mini-ITX format.
A little over a month after the launch of the ASUS B150 Pro Gaming/Aura, the Taiwanese manufacturer renews the offer of gaming motherboards, presenting the Asus B150I Pro Gaming/WiFi/Aura, a new model that inherits the best features of the previous B150 Pro Gaming/Aura, declining in the most compact form-factor Mini-ITX.
The new B150I Pro Gaming/WiFI/Aura integrates with LGA1151 socket support for Intel Core i7 i5/i3/Pentium and Celeron processors of the sixth generation and the Intel B150. Do not miss Asus Aura, aimed at gamers who love modding wishing to personalize their homes with an LED lighting system customizable.

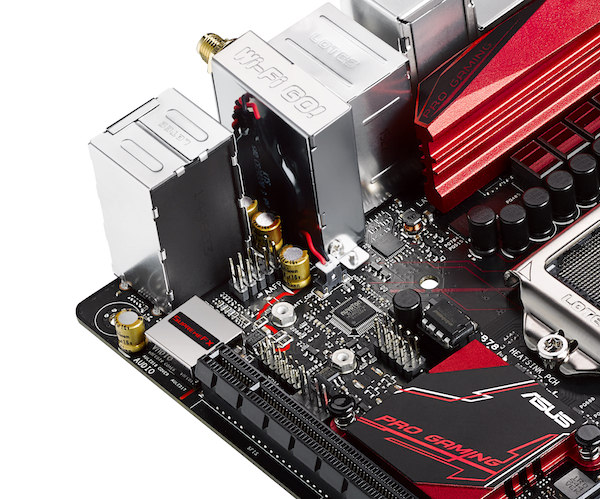

In terms of connectivity include the presence of the module WiFi 802.11ac 2×2 MU-MIMO and a number of expansion slots and ports that saw the format adopted by force of circumstances is smaller than the ATX counterpart. There are two DIMM slots, one PCI Express 3.0 x16 slots, four SATA connectors and a total of seven USB ports, one with Type-C standard.

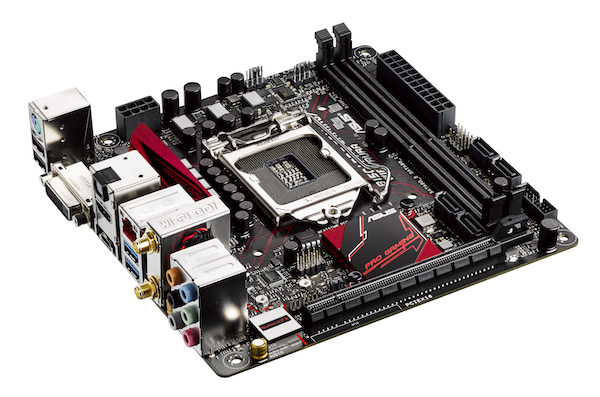

ASUS B150I card is intended for users interested in assembling a high-performance system that can take advantage of the now known optimizations introduced by Asus for gamers (GameFirst – management priorities related to the game packages, RAMCache, to improve times loading and to avoid data loss, Gamers’ Guardian, protection system to better manage critical components such as CPU and RAM), all without excessively increase the overall dimensions of the PC: the Mini-ITX board measuring only 14 cm x 14 cm.
Asus B150I Pro Gaming/WiFi/Aura – Specifications
| Processor / Socket | LGA1151 socket for Intel® Core ™ i7 / i5 / i3 / Pentium / Celeron sixth generation |
| Chipset | Intel B150 |
| Storage | 2 x DIMM, up to a maximum of 32 GB DDR4 2,133 MHz |
| Expansion Slots |
1 x PCI Express 3.0 x16 |
| Graphics | Intel HD Graphics processor integrated in the CPU HDMI with resolution up to 4,096 x 2,160 at 24Hz DVI-D with a maximum resolution of 1,920 x 1,200 at 60Hz Intel InTru 3D / Quick Sync Video / Clear Video HD Technology / Insider |
| Audio | SupremeFX audio codec to eight channels with high definition |
| Wireless | 802.11ac 2×2 MU-MIMO Wi-Fi |
| Storage |
4 x SATA 6.0 Gbit/s |
| Networking | Intel Gigabit Ethernet, LANguard, GameFirst |
| USB ports | 4 x USB 3.0 Type-A (2 mid-board; 2 on the rear panel) 1 x USB 3.0 Type-C (on the rear panel) 4 x USB 2.0 / 1.1 (2 mid-board; 2 on the rear panel) |
| Size / Form Factor | Mini-ITX, 17 x 17 cm |
| LED Lighting | ASUS Aura, as follows: Static; breathing; strobing; Music Effect; CPU Temperatures; Rainbow, Comet, Flash and Dash, Rainbow Wave, Starry Night and Glowing Yo-Yo |
- LGA1151 socket for 6th Gen Intel Core Desktop Processors
- Aura: RGB lighting control for a customized look
- Dual-band 802.11ac Wi-Fi + Intel Gb LAN
