Fanless mini-PC with Intel Core i7, are the new solutions by Shuttle
Shuttle has announced three new small systems fanless. Unlike DS57U, the new model but integrate Intel Core i3, i5 and i7, delivering performance reflected significantly higher.

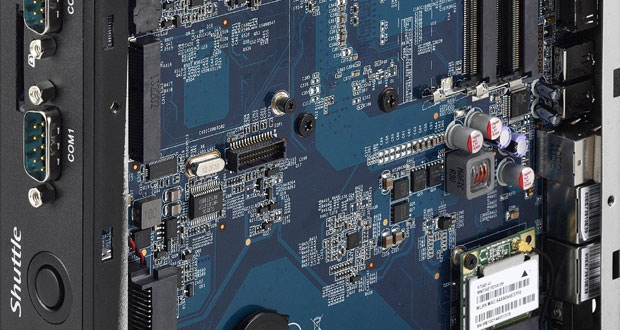

Shuttle has announced three new models of the DS. At DS57U already available from distributors in Europe and we talked on this occasion, models added Barebone DS57U3, DS57U5 and DS57U7 with Intel Core i3, Core i5 and Core i7 soldered on the logic board. Are all based on the micro architecture Broadwell structure to 14 nm, which is characterized by a particularly low energy consumption and improved graphics.

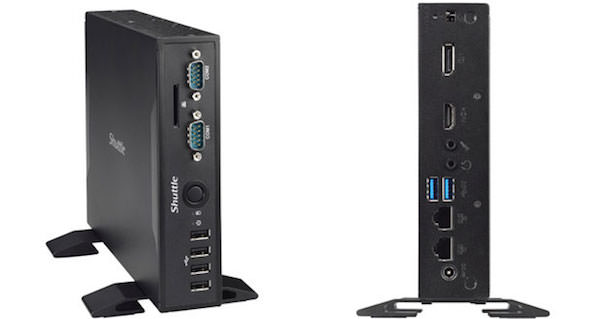

In a compact size (20 x 3.95 x 16.5 cm), the new variants can be integrated if necessary up to 16 GB of memory DDR3L, 1.35 Volt energy efficient format SO-DIMM and an SATA III 2.5″. There are also two Mini-PCIe slot, one occupied by a WLAN module, the other is available for the installation of an additional storage unit MSAT. The case is in steel, and two Gigabit Ethernet, two USB 3.0, four USB 2.0, card reader and audio connections.
There are, as in the tradition of the family of products, two serial interfaces and connect Remote Power ON, enabling the use of the systems in professional environments and in installations difficult to reach. The devices are also equipped with DisplayPort and HDMI connection, while on the graph are the GPU Intel HD Graphics 5500 can handle video content in 2160p resolution (4K) up to 60Hz.
” Following the successful market launch of DS57U in February this year, she now present three other models that have nothing to fear in terms of power, quiet operation and durability, ” says Tom Seiffert, Head of Marketing & PR Shuttle Computer Handels GmbH. ” The absence of a fan in combination with Intel Core processors in a format of this size have a solution that leaves the competition far behind. ”
The new models can be installed in various positions, for example with the supplied cradle to save space, in direct contact with the desk or in any place and with any compatible monitor using the VESA support is also provided.
Shuttle has also announced prices, which are summarized in the list that we propose below. By clicking on the links below, it is also possible to read the technical specifications of the various models and all hardware integrated. The prices include taxes, but RAM and disk storage are purchased separately.
