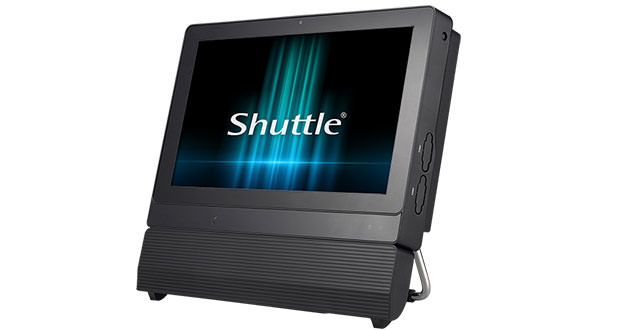

Shuttle XPC P20U all-in-one: Compact all-in-one PC with integrated multitouch display
The new XPC P20U all-in-one is an all-in-one designed for the professional world, characterized by extremely small dimensions compared to other devices in the category. Here are some areas in which it might be useful.
All-in-One PC with touchscreens are a particularly popular choice especially for those who need a solution that offers speed, ease of installation, small dimensions on the desk and the elimination of the usual tangle of cables. After the fanless models of the X50 family, Shuttle introduces a further variant from the very special form factor, with a diagonal of the display of only 11.6 inches. It is basically an all-in-one with dimensions slightly superior to those of a tablet.
Shuttle XPC P20U all-in-one is suitable for installation where space for larger All-in-One PC is not sufficient. Its external dimensions are just 29.9 x 27.1 x 5.0 cm and if the wiring is not needed, by eliminating from the bottom edge of the device the cable management system will earn another 6.8 cm in height. The computer offers a capacitive matrix for the touchscreen. It is silent, low maintenance, and has a provision for NFC, in addition to the aforementioned cable management system.
The display with a diagonal of just 30 cm (11.6 inches) has a sufficient surface for the classic touchscreen applications. An HDMI connection and a VGA connection for a second or third display are also available for playback of customized content. The entire front panel is also protected against dust and water splashes in accordance with IP-54 classification and is easy to clean.
Explains the usefulness of such a system Tom Seiffert of Shuttle Computer: ” The format is particularly suitable for POS, but creative solutions are a pleasant surprise even in other sectors that increasingly rely on our products “, declared. The hardware package offers sufficient possibilities for POS applications, control tasks or Office applications.
P20U is based on the energy-efficient Intel Celeron 3865U processor with two cores, 1.8 GHz and HD Graphics 610. Two slots are available for a total of 32 GB of DDR4-RAM memory (not supplied). An external type A USB connector, together with the holes for external antennas, is used, for example, to enhance the reception of the 4G module.

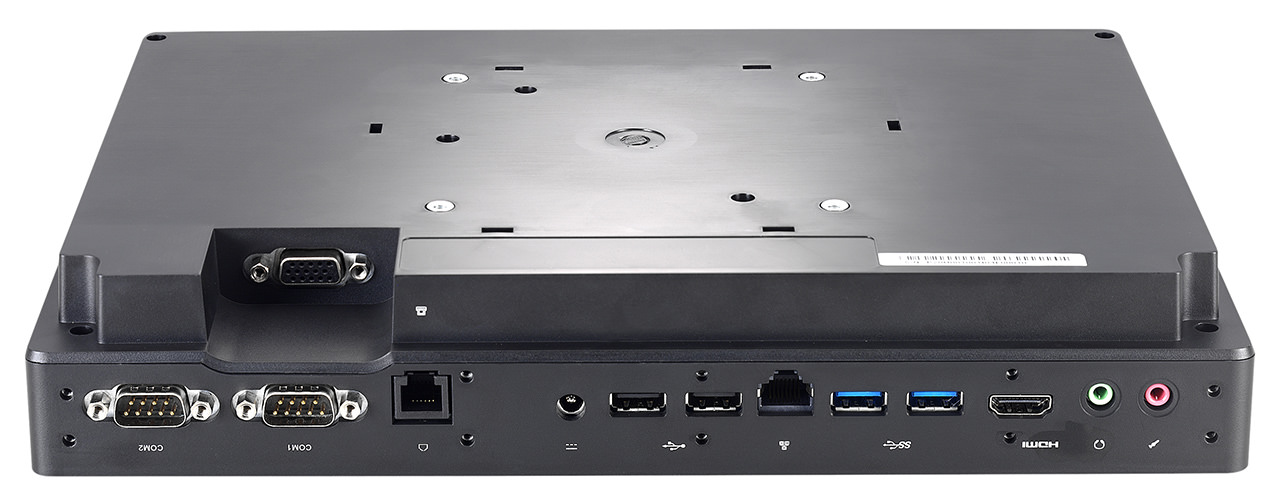

Shuttle XPC P20U also has a mobile base, whose inclination angle can be adjusted as desired. Removing the base, a standard VESA mounting surface appears, which can be used for installation on walls or other surfaces. The compact case can accommodate a 2.5″ unit (HDD / SSD) and a NVMe SSD in M.2 format. In accordance with the philosophy of the PC All-in-One, the P20U integrates web cam, microphone, speaker, WLAN, Bluetooth and Gigabit Ethernet Devices can be connected via six USB ports and two RS-232 interfaces.
Other serial interfaces (PCP21) and an NFC module (PNFC01) are available as optional accessories.
